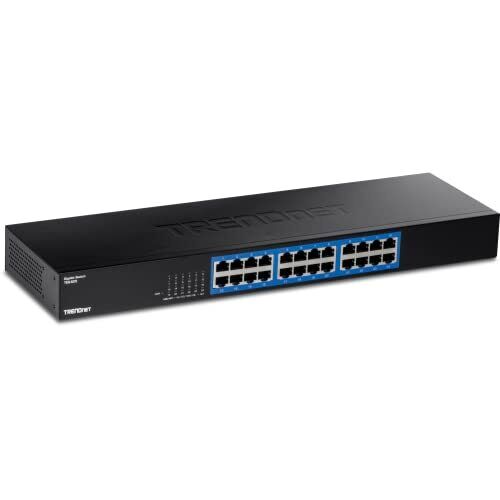

TRENDnet TEG S25 Switch 24-porte Gigabit
TRENDnet TEG S25 - Switch - 24 x 10/100/1000 - monterbar på stativ - TAA-kompatibel
-
Product no 1000741329
Model TEG-S25
Brand
Go to brand's websiteEAN 0710931140873
Weight 2.51 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TEG S25 - switch - 24 porte - monterbar på stativ - TAA-kompatibel |
| Enhedstype | Switch - 24 porte |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 |
| Præstation | Omkoblingskapacitet: 48 Gbps<br>Videresendelsesrate (64‑byte pakker): 18,6 Mpps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Egenskaber | Halv dupleksmodus, fuld dupleksmodus, blæserløs |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 2.5 cm x 16 cm x 10.9 cm |
| Vægt | 414 g |
| TAA kompatibel | Ja |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 24 ports |
| Enclosure Type | Rack-mountable |
| Features | Half duplex mode, full duplex mode, fanless |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 48 Gbps | Forwarding rate (64‑byte packets): 18.6 Mpps |
| Ports | 24 x 10/100/1000 |
| RAM | 512 KB |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 |
| Power | |
| Power Consumption Operational | 9.5 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC, ETL |
| MTBF | 674,176 hours |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 10.9 cm |
| Weight | 414 g |
| Width | 2.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
