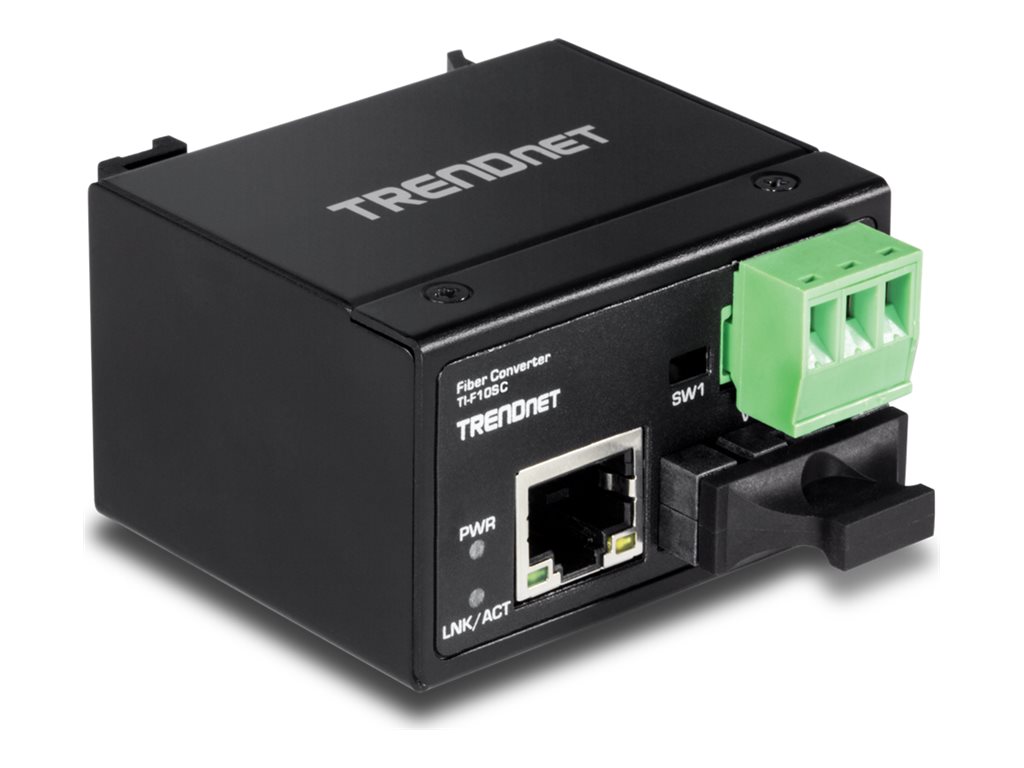

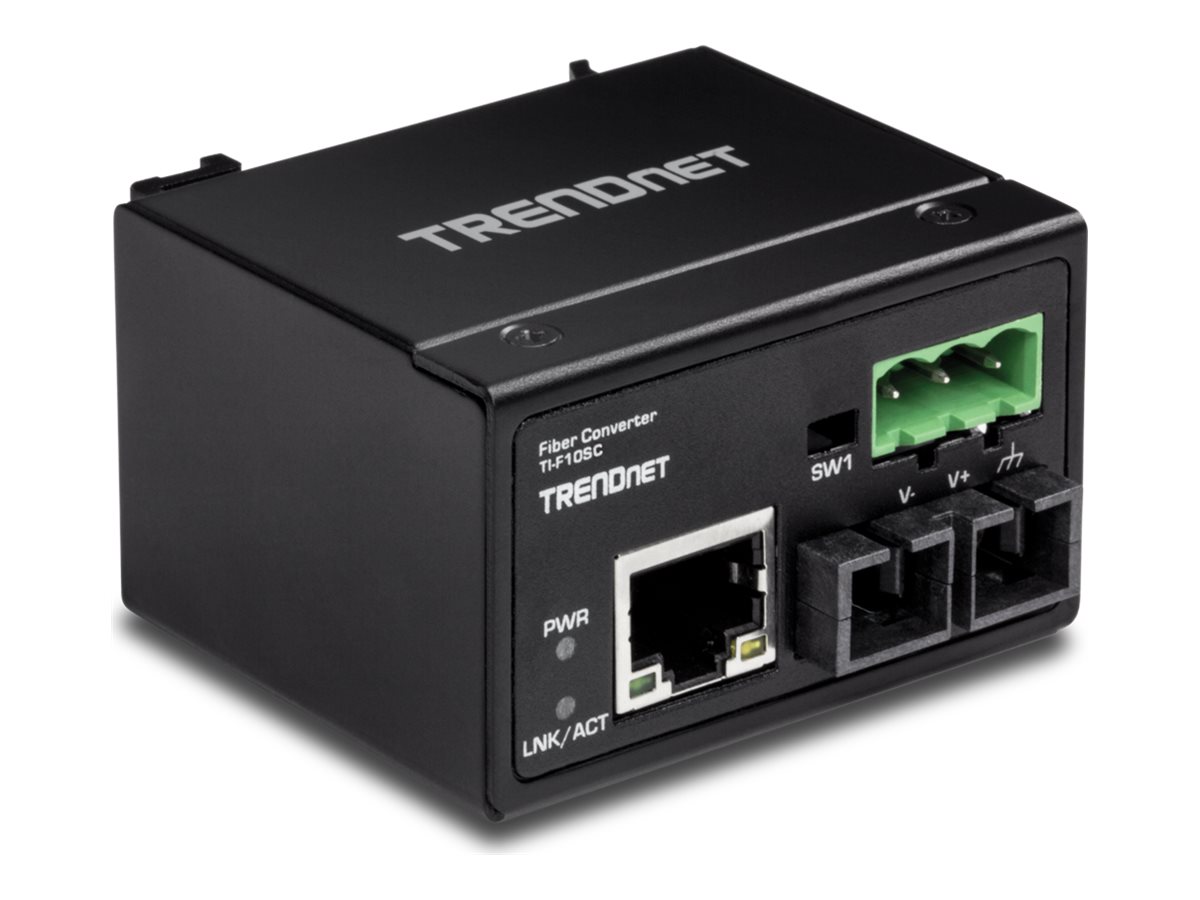

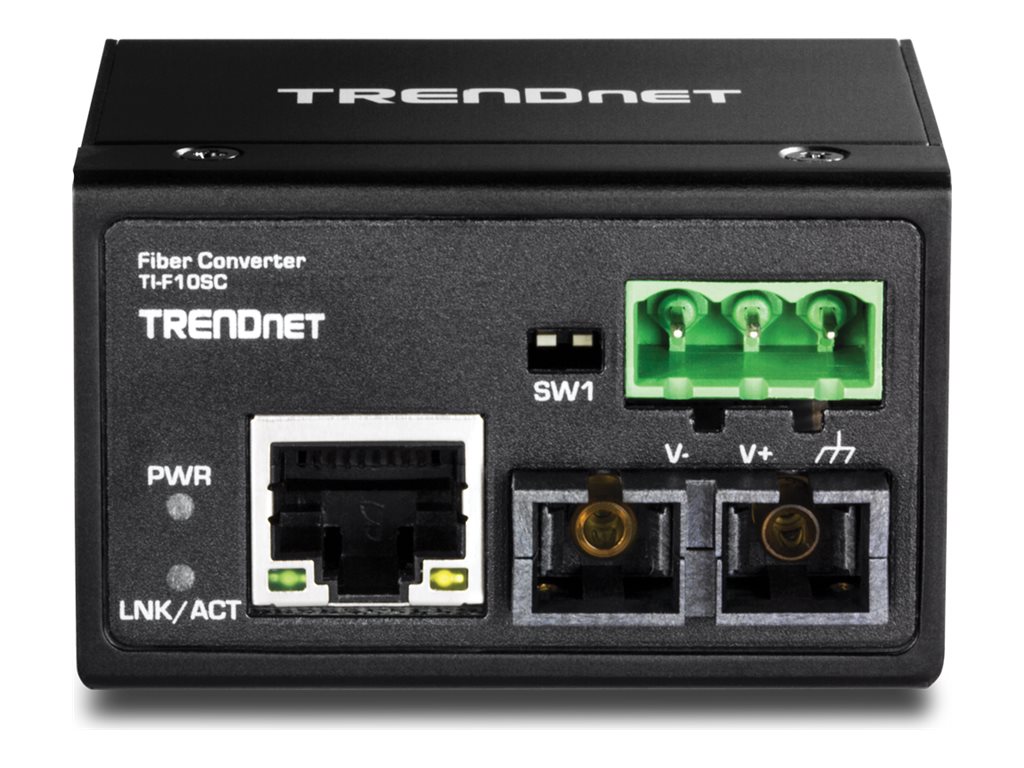

TRENDnet TI-F10SC Fibermedieomformer Ethernet Fast Ethernet
TRENDnet TI-F10SC - Fibermedieomformer - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimodus - op til 2 km - 1310 nm - TAA-kompatibel
1 116,00 SEK
892,80 SEK excl. VAT
-
Product no 990065800
Model TI-F10SC
Brand
Go to brand's websiteEAN 0710931160451
Weight 0.29 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-F10SC - fibermedieomformer - 10Mb LAN, 100Mb LAN - TAA-kompatibel |
| Enhedstype | Fibermedieomformer - RJ-45 / SC multimodus |
| Model | Monterbar på DIN rail |
| Kabeltype | 10Base-T, 100Base-FX, 100Base-TX |
| Optisk bølgelængde | 1310 nm |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN |
| Maks. overføringsafstand | 2 km |
| Dimensioner (B x D x H) | 6 cm x 5 cm x 3.5 cm |
| Vægt | 88 g |
| TAA kompatibel | Ja |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Fiber media converter |

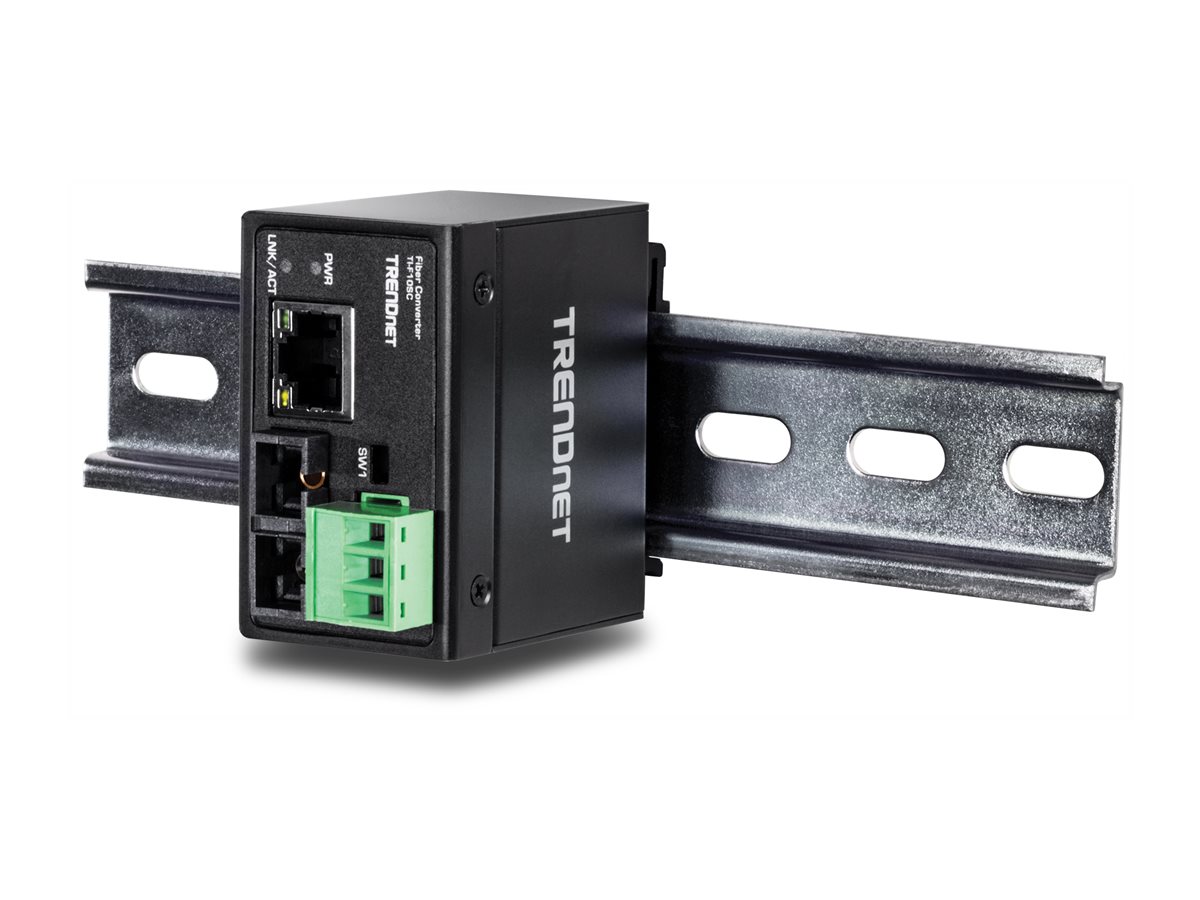

| Form Factor | DIN rail mountable |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Features | Auto-negotiation, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, over-current protection, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1310 nm |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 100Base-FX - SC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP40 |

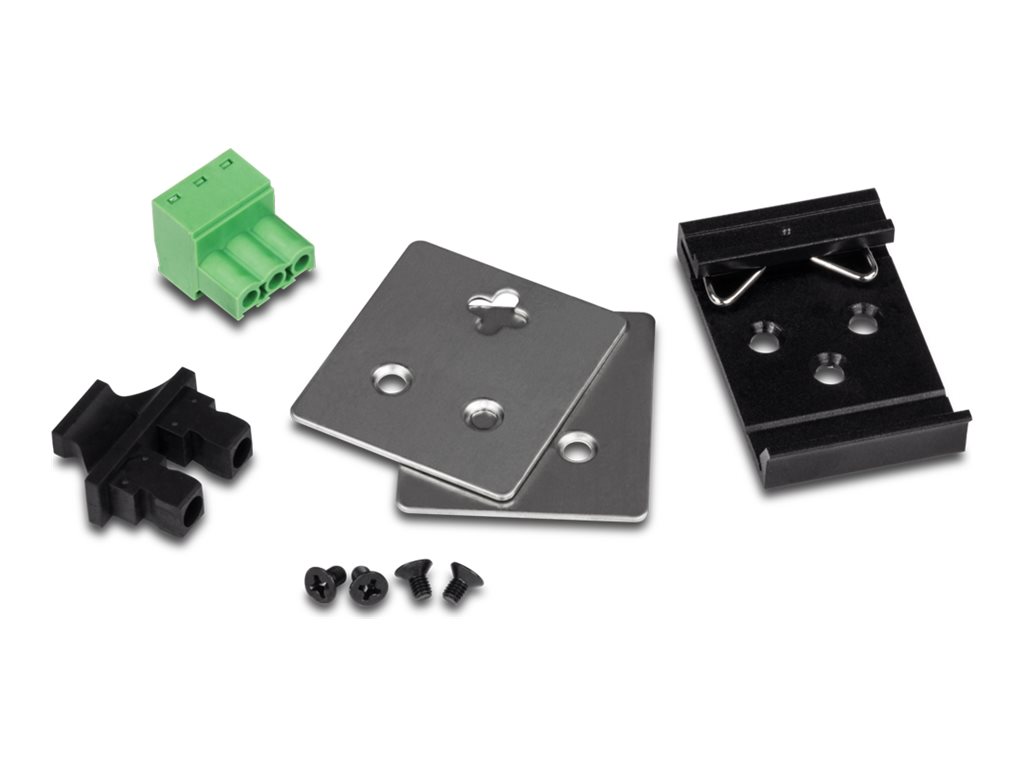

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Power | |
| Power Consumption Operational | 1.92 Watt |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Depth | 5 cm |
| Height | 3.5 cm |
| Weight | 88 g |
| Width | 6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
