Scythe Mugen 6 Dual Fan Black Edition Processor-køler 120 mm
Scythe Mugen 6 Dual Fan Black Edition - Processor-køler - 120 mm - Intel/AMD
706,00 SEK
564,80 SEK excl. VAT
-
Product no 1001957323
Model SCMG-6000DBE
Brand Scythe
EAN 4571225059723
Weight 1.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Compatibility (Intel) | LGA115X, LGA1200, LGA1700, LGA2011 / 2011-v3 (Square ILM), LGA2066 |
| Compatibility (AMD) | AM4, AM5 |
| Dimensions (W x H x D) | 132 x 154 x 132 mm (incl. Fan) |
| Weight | 1197 g (incl. Fan) |
| Fan Model | Wonder Tornado 120 PWM (WT1225FD20-P) |
| Fan Dimensions | 120 x 120 x 26 mm |
| Noise Level | 3 ~ 26.88 dBA |
| Fan Speed | 300 (±200 rpm) ~ 2000 rpm (±10%) |
| Airflow | 7.68 ~ 60.29 CFM / 13.08 ~ 102.44 m³/h |
| Connector | 4-Pin PWM |
| Weight | 177 g |
| Static Pressure | 0.49 ~ 24.03 Pa / 0.05 ~ 2.45 mmH²O |
| Bearing | Sealed Precision FDB |
| Voltage | 12 V / 0.15 A |
| MTTF | 120 000 hours |

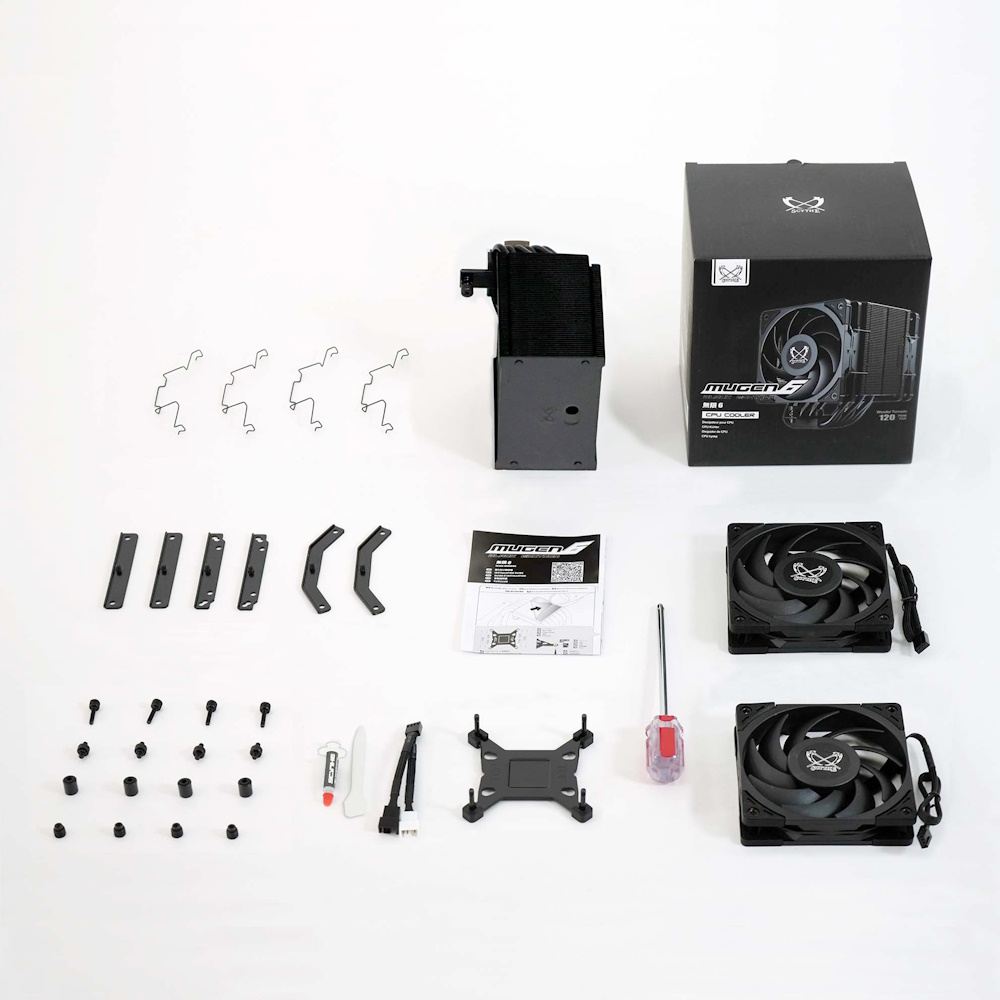

| Accessories included | Mountingparts for Intel & AMD Sockets, Manual, Thermal Grease, Fan Clips, two Wonder Tornado 120mm Fan, Screwdriver |
| Præstation | |
|---|---|
| Antal pr. pakke | 1 stk |
| Luftstrøm | 102,44 m³/t |
| Maksimal luftstrøm | 60,29 kubikfod/min. |
| Maksimalt lufttryk | 2,45 mmH2O |
| Mindste luftmængde | 7,68 kubikfod/min. |
| Minimum lufttryk | 0,05 mmH2O |
| Omdrejningshastighed (maks.) | 2000 rpm |
| Omdrejningshastighed (min.) | 300 rpm |
| Passende til rumtype | Processor |
| Støjniveau (høj hastighed) | 26,88 dB |
| Støjniveau (lav hastighed) | 3 dB |
| Type | Ventilator |
| Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Stik AM4, Sokkel AM5 |
| Ventilator diameter | 12 cm |
| Ventilatorens middeltid til fejl (MTTF) | 120000 t |
| Design | |
| Produktfarve | Sort |
| Strømstyring | |
| Spænding | 12 V |
| Vægt & størrelser | |
| Bredde | 132 mm |
| Dybde | 132 mm |
| Højde | 154 mm |
| Vægt | 1,2 kg |
| Ventilator dimensioner (BxDxH) | 120 x 120 x 26 mm |
| Ventilator vægt | 177 g |
| Emballage indhold | |
| Monteringssæt | Ja |
| Pakketype | Kasse |
| Skruer inkluderet | Ja |
