CPU
|
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
|
Chipset
|
AMD B850
|
|
Memory
|
4x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Max: 256GB
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
|
|
Audio
|
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
LAN
|
Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Slots
|
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
Storage
|
1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 2x Hyper M.2 Socket, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1x USB 3.2 Gen2 Type-C (Rear), 1x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 Type-A (2 Rear , 4 Front), 8x USB 2.0 (4 Rear, 4 Front)
|
|

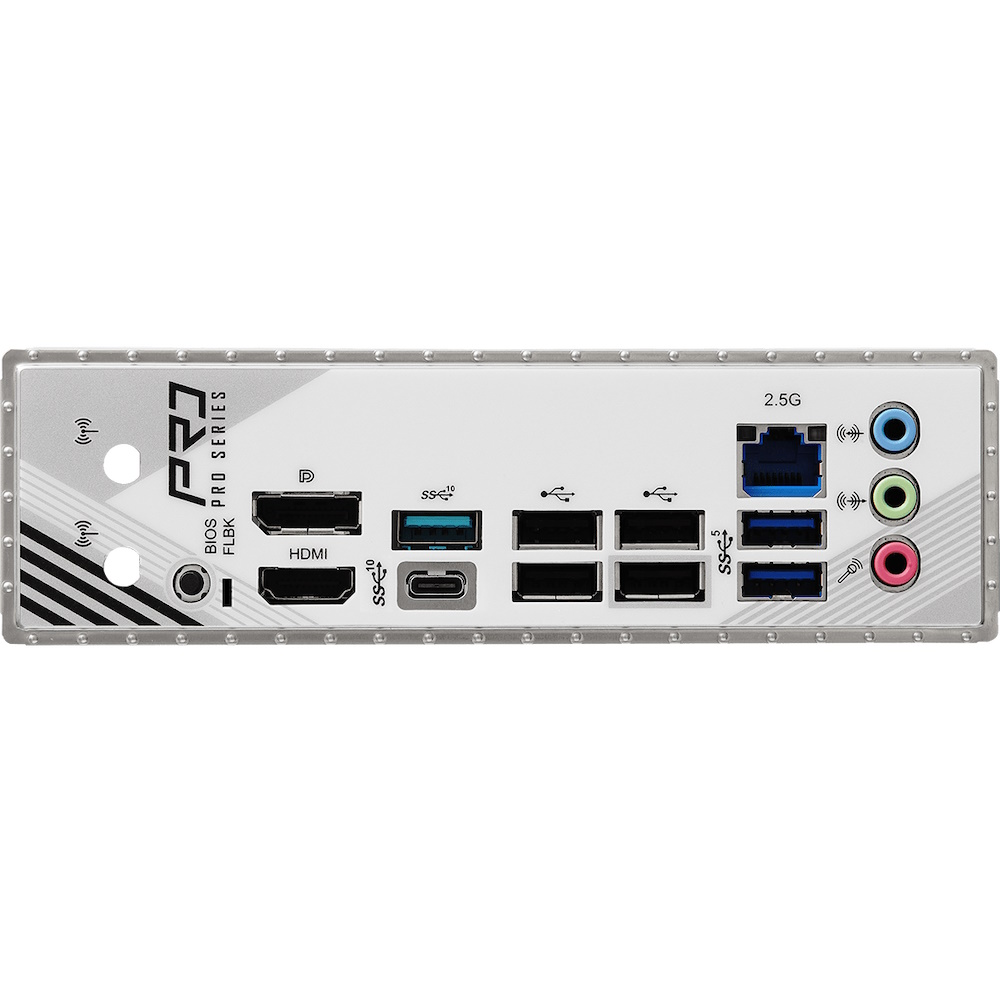

Rear Panel I/O
|
2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port, 2x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Accessories
|
2x SATA Data Cables, 1x Screw for M.2 Socket
|
|
Form Factor
|
Micro ATX Form Factor: 24.4 cm x 24.4 cm
|
|
Certifications
|
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
|
Danmarks vildaste elektronikwebshop finns nu i Sverige

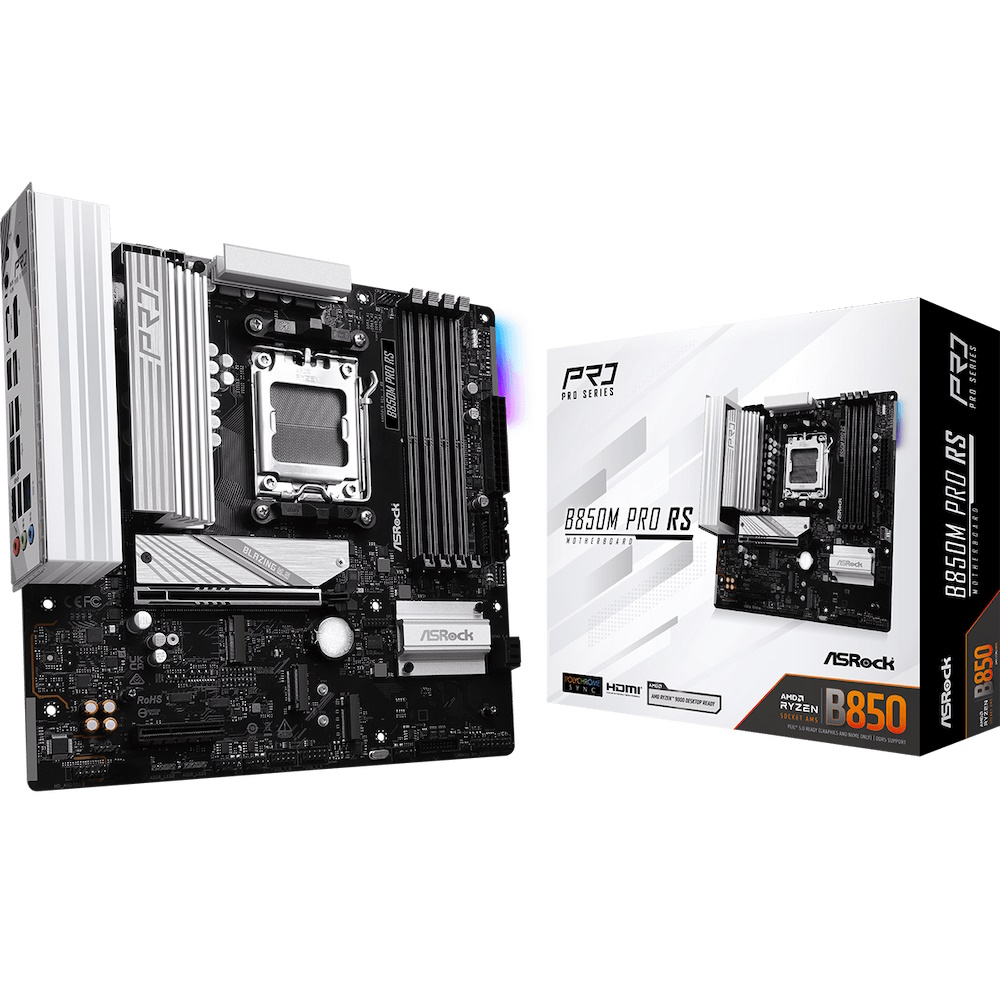

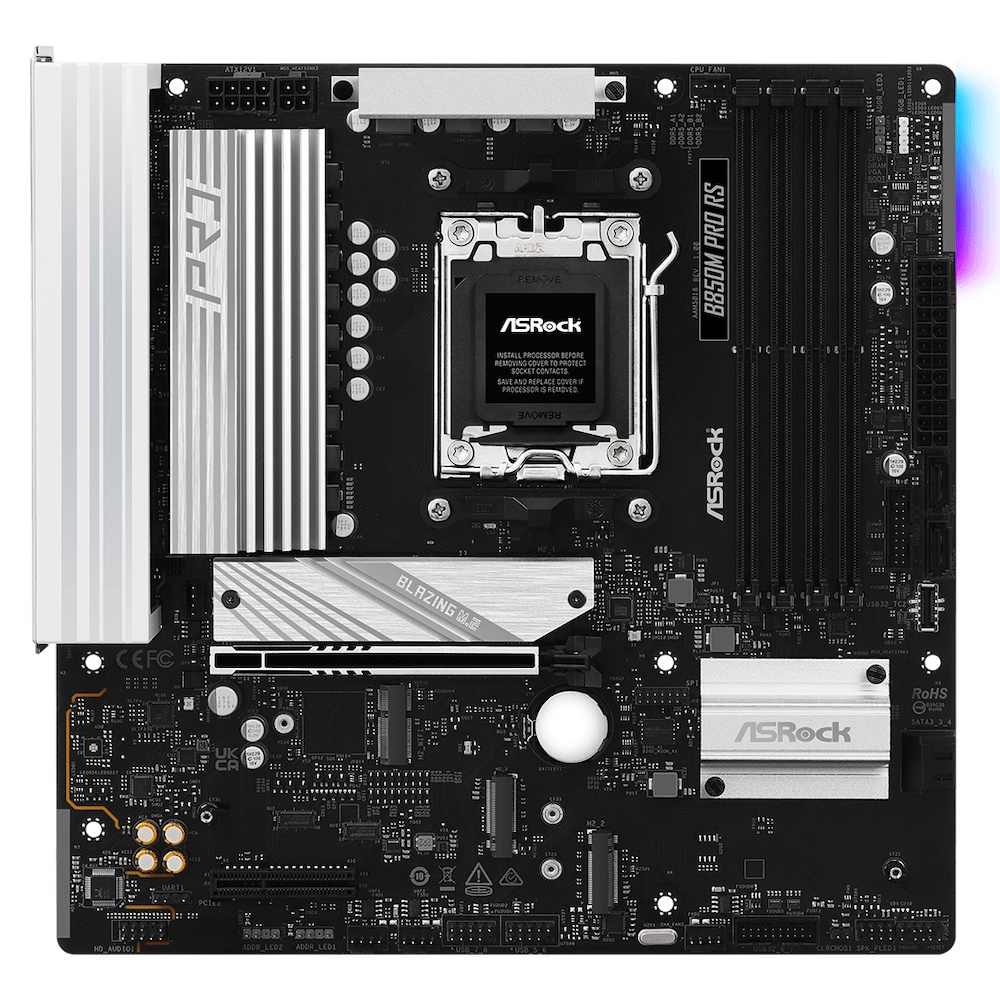

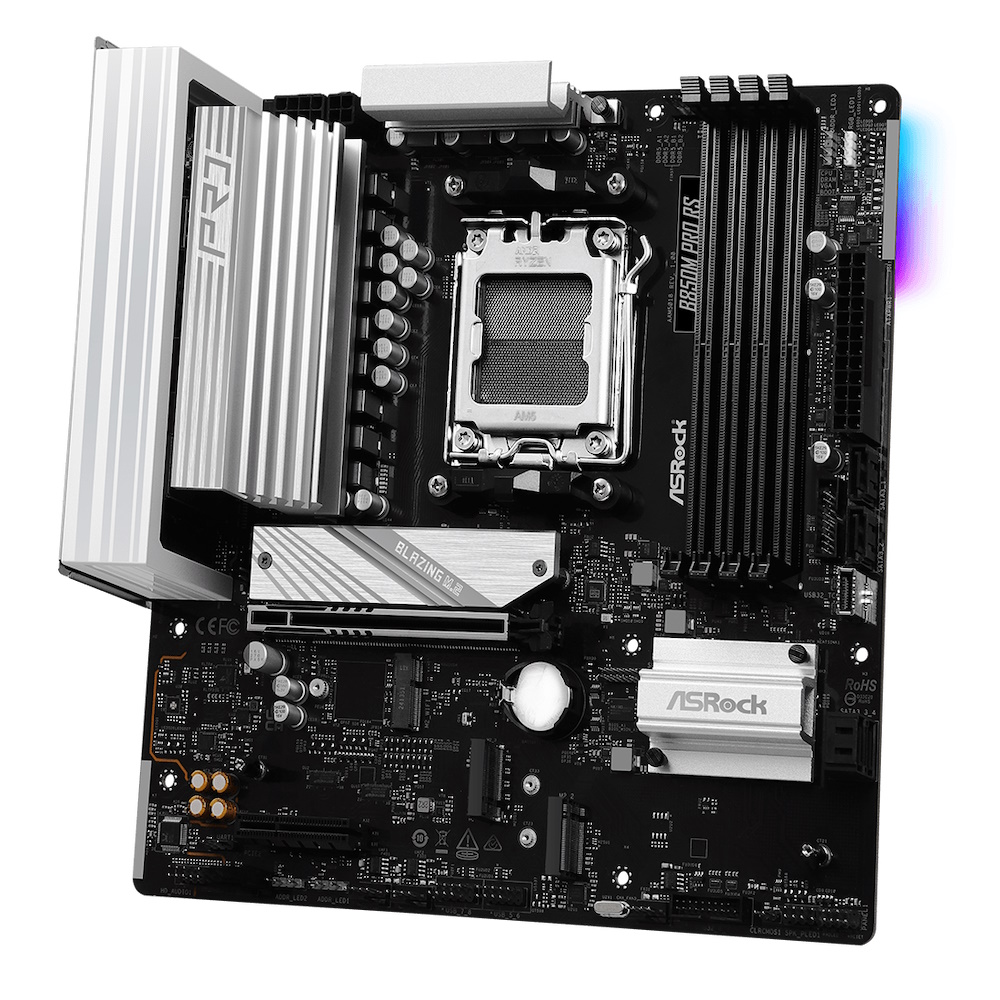

ASRock B850M Pro RS mATX AM5
ASRock B850M Pro RS - mATX - Socket AM5 - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
Varenummer:
1002936291
Model:
90-MXBR6-A0UAYZ
EAN:
4711581490345
Varumärke:
Vægt:
1.26 kg
