StarTech.com USB-adapter PCI Express 2.0 x1 5Gbps
StarTech.com 4 Port PCI Express USB 3.0 Card - 2 Ext & 2 Int (IDC) - SATA Power - USB-adapter - PCIe 2.0 lavprofil - USB 3.0 x 4 - for P/N: ST1030USBM, ST7300USBME
539,00SEK431,20SEK excl. VAT
-
Product no 989728563
Model PEXUSB3S2EI
Brand StarTech.com
EAN 0065030860338
Weight 0.14 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 4 Port PCI Express USB 3.0 Card - 2 Ext & 2 Int (IDC) - SATA Power - USB-adapter - PCIe 2.0 - USB 3.0 x 4 |
| Enhedstype | USB-adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 2.0 x1 |
| Porte | USB 3.0 x 4 |
| Dimensioner (B x D x H) | 1.8 cm x 12.2 cm x 9.2 cm |
| Vægt | 55 g |
| Dataforbindelsesprotokol | USB, USB 2.0, USB 3.0 |
| Dataoverførselshastighed | 5 Gbps |
| Processor | Renesas uPD720201 |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0 |
| Systemkrav | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 eller senere, Microsoft Windows Server 2012, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit) |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: ST1030USBM, ST7300USBME |
| General | |
|---|---|
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Features | Built-in SATA power connector, USB Attached SCSI Protocol (UASP) |
| Ports | USB 3.0 x 4 |
| Processor / Memory | |
| Processor | Renesas uPD720201 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.0 - 9 pin USB Type A (external) | 2 x USB 3.0 - 20 pin USB 3.0 header (internal) |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Low-profile bracket |
| MTBF | 1,920,042 hour(s) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 or later, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits) |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | |
| Depth | 12.2 cm |
| Height | 9.2 cm |
| Weight | 55 g |
| Width | 1.8 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Compatibility Information | |
| Designed For | P/N: ST1030USBM, ST7300USBME |
Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers
- Flexibility to connect external and internal USB 3.0 devices and supports UASP
- Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
- Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

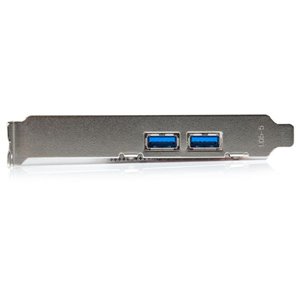

Flexible and convenient port design
With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.
.jpg)

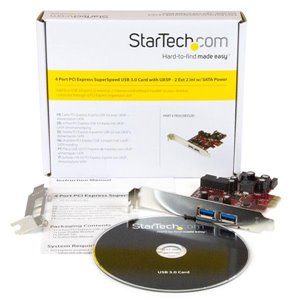

Simple installation and supports older devices
The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.Connecting older peripherals isn't a problem either. So, there’s no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.
.jpg)

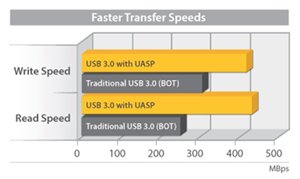

Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.Applications
- Install as a vital hardware component when building your own computer or when upgrading your case
- Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer
.jpg)
.jpg)
