StarTech.com USB-adapter PCI Express 2.0 x1 5Gbps

StarTech.com 7 Port PCI Express USB 3.0 Card - Standard & Low-Profile - SATA Power - UASP Support - 1 Internal & 6 External USB 3.0 Ports (PEXUSB3S7) - USB-adapter - PCIe 2.0 - USB, USB 2.0, USB 3.0 - for P/N: ST1030USBM, ST7300USBME
862,00SEK689,60SEK excl. VAT

  • Product no 989728564

    Model PEXUSB3S7

    Brand StarTech.com

    EAN 0065030860345

    Weight 0.16 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 7 Port PCI Express USB 3.0 Card - Standard & Low-Profile - SATA Power - UASP Support - 1 Internal & 6 External USB 3.0 Ports (PEXUSB3S7) - USB-adapter - PCIe 2.0
Enhedstype USB-adapter
Model Indstikskort
Grænseflade (bus) type PCI Express 2.0 x1
PCI-specifikationsrevision PCIe 2.0
Dimensioner (B x D x H) 12 cm x 10.5 cm x 1.5 cm
Vægt 72 g
Dataforbindelsesprotokol USB, USB 2.0, USB 3.0
Dataoverførselshastighed 5 Gbps
Systemkrav Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, kun Linux 2.6.31 - 4.11.x LTS versioner
Producentgaranti 2 års garanti
Designet for P/N: ST1030USBM, ST7300USBME
General
Device Type USB adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Networking
Connectivity Technology Wired
Data Link Protocol USB, USB 2.0, SuperSpeed USB 3.0
Data Transfer Rate 5 Gbps
Features USB Attached SCSI Protocol (UASP)
Expansion / Connectivity
Interfaces 6 x USB 3.0 - 9 pin USB Type A (external) | 1 x USB 3.0 - 9 pin USB header (internal) | 1 - 15 pin Serial ATA power
Miscellaneous
Included Accessories Low-profile bracket
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.6.31 - 4.11.x LTS versions only
Software Included Drivers & Utilities
Dimensions & Weight
Depth 10.5 cm
Height 1.5 cm
Weight 72 g
Width 12 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C
Compatibility Information
Designed For P/N: ST1030USBM, ST7300USBME

Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer

  • Extend your system capabilities by adding 7 USB 3.0 ports – 6 external and 1 internal – to any PCIe compatible computer
  • Unique dual-profile design fits standard and low-profile computers
  • Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later
Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
slide {0} of {1}, zoom in, Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
slide {0} of {1}, zoom in, Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
slide {0} of {1}, zoom in, Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
slide {0} of {1}, zoom in, Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
slide {0} of {1}, zoom in, Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer

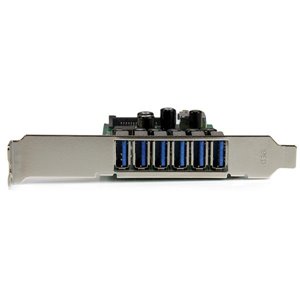

Greater port count. Greater scalability.

Greater port count. Greater scalability.

More ports means you can add USB devices as you need them.  This robust USB 3.0 card gives you seven USB 3.0 ports – six external and one internal – so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical – by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

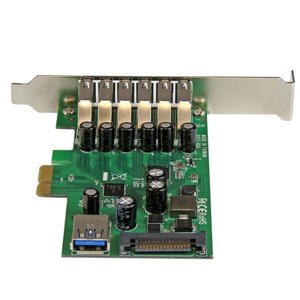

Unique dual-profile design

Unique dual-profile design

This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

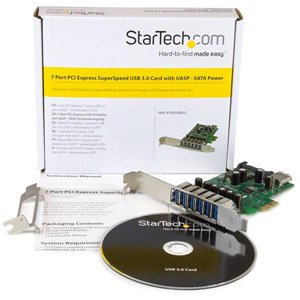

Easy driver installation

Easy driver installation

You'll be up and running in no time. The card automatically installs in Windows 8.1 and 8, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Applications

  • Enhance the connectivity capabilities of your PCI Express enabled computer or server
  • Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer
